Example Projects

Graphics32 comes with an extensive collection of ready-to-run example applications located in the Examples directory of the repository.
These projects demonstrate key graphics algorithms, rendering techniques, user interaction patterns, and performance optimizations available in the library.

Each example includes complete Delphi (.dpr) and, in most cases also, Lazarus/FPC (.lpi) project files, allowing you to compile, run, and inspect the implementation details directly.

Available Examples

Example	Demonstrates	Screenshot

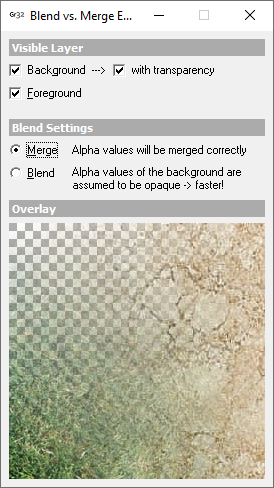

BlendVsMerge	Concept: Pixel blending vs pixel merging Techniques: Alpha compositing, direct pixel arithmetic API: MergeReg, BlendReg, TImage32, TBitmap32

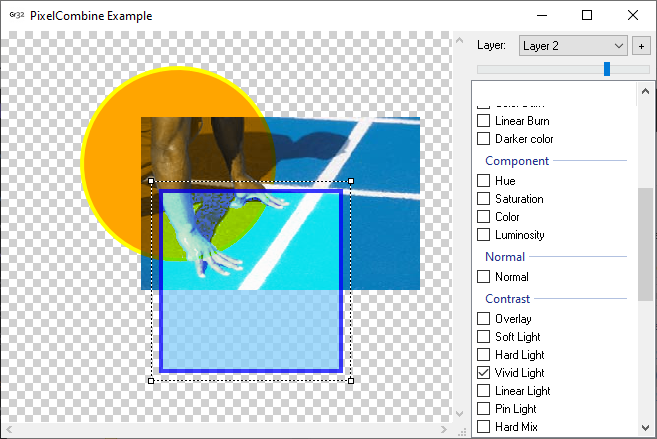

PixelCombine	Concept: Porter-Duff alpha composition modes Techniques: Interactive layer blending, custom pixel combination callbacks API: GR32.Blend.Modes.PhotoShop, GR32.Blend.Modes.PorterDuff, TImgView32, TBitmapLayer, TRubberbandLayer, BlendLine, CombineMode, ExecDrawLayers, Graphics32BlendService

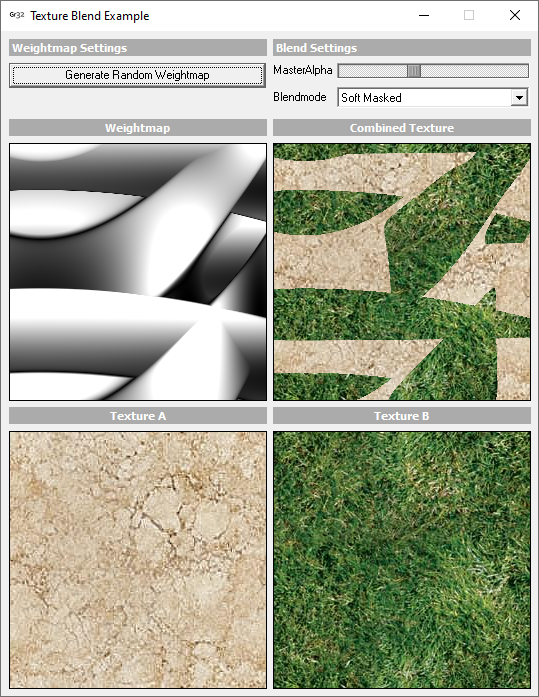

TextureBlend	Concept: Color algebra composition modes (Multiply, Screen, Overlay, Add, Subtract) Techniques: Multi-texture composition and custom blend modes API: TImage32, BlendRegEx, Color Algebra, BlendTransfer

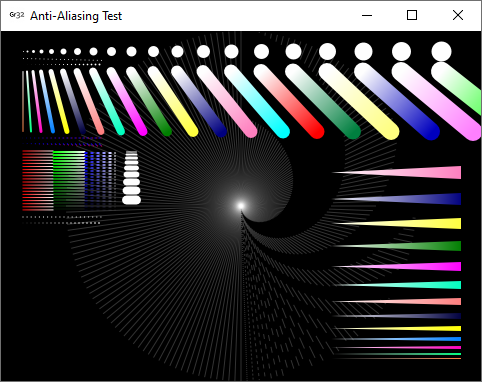

AntiAliasing	Concept: High-quality antialiased line and polygon rendering Techniques: Subpixel accuracy, vector rasterization, polyline and polygon antialiasing API: TPaintBox32, TPolygonRenderer32VPR, PolygonFS, PolyPolygonFS, TLinearGradientPolygonFiller, BuildPolyLine, Circle

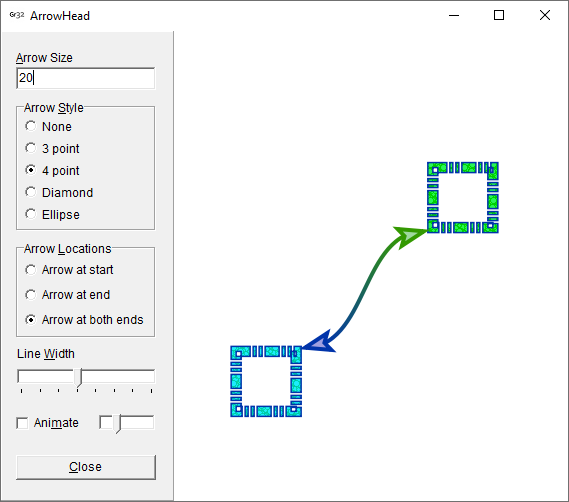

ArrowHead	Concept: Vector path end caps and polygon fillers Techniques: Bezier path decoration and custom line arrowheads API: TFlattenedPath, CurveTo, TArrowHeadAbstract, TLinearGradientPolygonFiller, PolylineFS, PolygonFS, TBitmapPolygonFiller, SegmentIntersect, DashLineFS

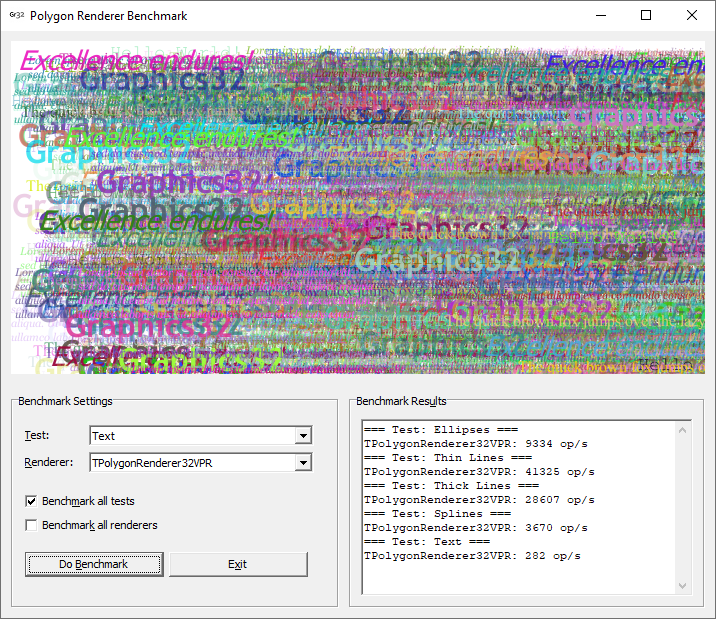

Benchmark	Concept: Polygon rasterizer performance benchmarking Techniques: Comparing different rasterizer back-ends and fill modes API: TCanvas32, TImage32, TStrokeBrush, TSolidBrush, GR32_VPR2, GR32_Polygons.GDI, GR32_Polygons.GDIPlus,, GR32_Polygons.Direct2D, GR32_Polygons.AggLite

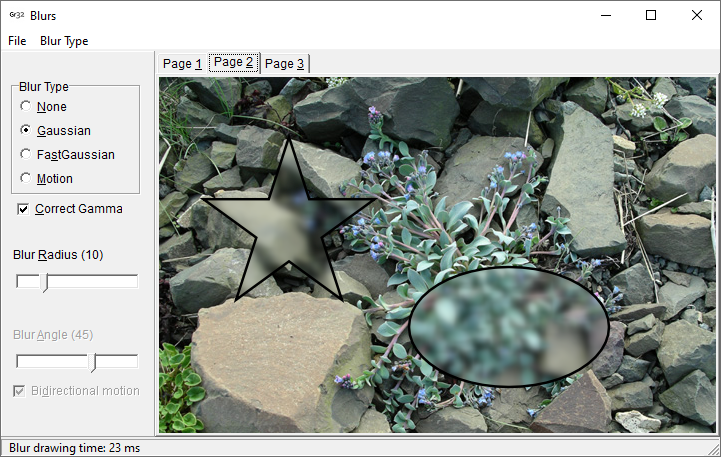

Blurs	Concept: Spatial blur filters (Gaussian, Motion, Selective) Techniques: Multi-pass spatial convolution, box blur approximations, directional filtering API: GR32.Blur, Blur32, MotionBlur, SelectiveGaussianBlur32

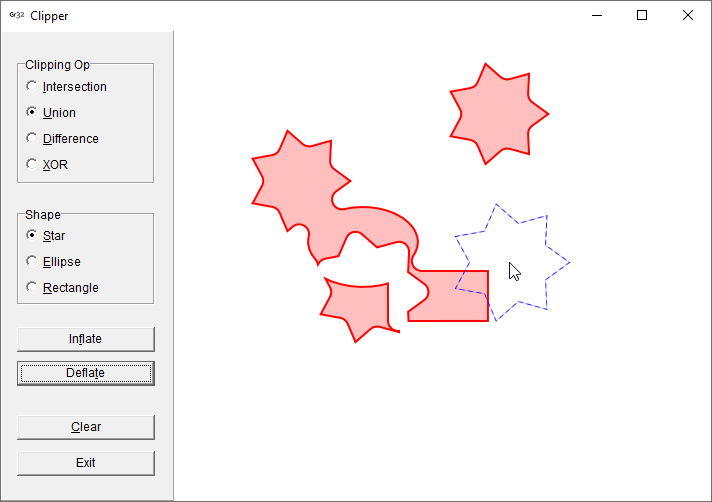

Clipper	Concept: Polygon Boolean operations and offsetting with Clipper Techniques: Intersection, Union, Difference, XOR, polygon inflating/deflating API: GR32_Clipper, TClipper32

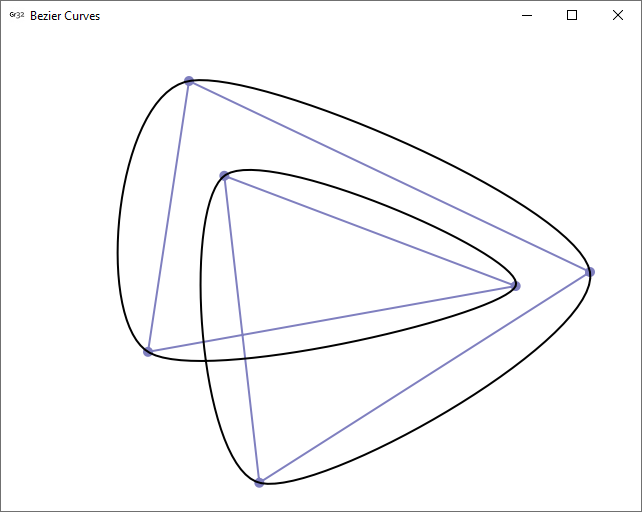

CubicSpline	Concept: Cubic Spline Bezier curve construction Techniques: Smooth curve fitting, interactive node control, vector path generation API: TPolygonRenderer32VPR, BuildPolyPolyLine, PolyPolygonFS, TPaintBox32

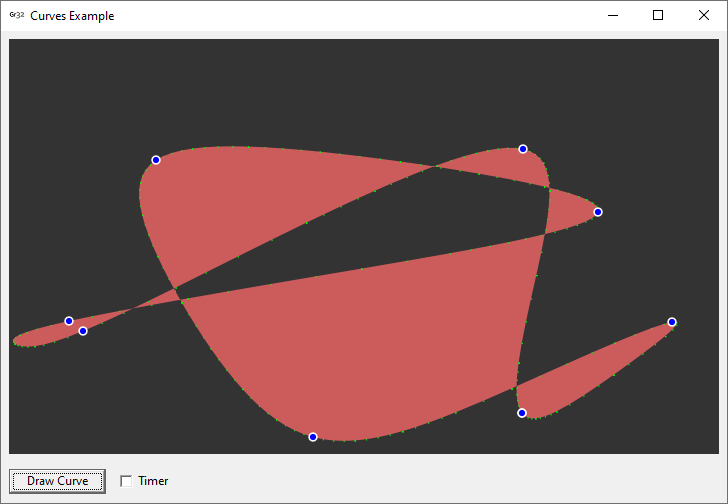

Curves	Concept: Vector path generation and spline curves Techniques: Control point manipulation and stroke styling using TCanvas32 API: TCanvas32, TStrokeBrush, TSolidBrush, TDashedBrush, TCustomBrush, TNestedBrush, THammingKernel

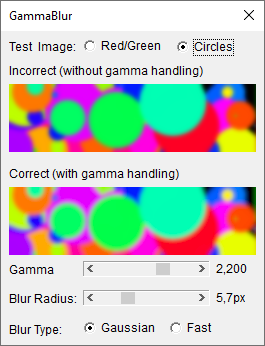

GammaBlur	Concept: Gamma-correct spatial blurring Techniques: sRGB vs linear color space blurring comparisons API: GR32.Blur, GR32_Gamma, Blur32

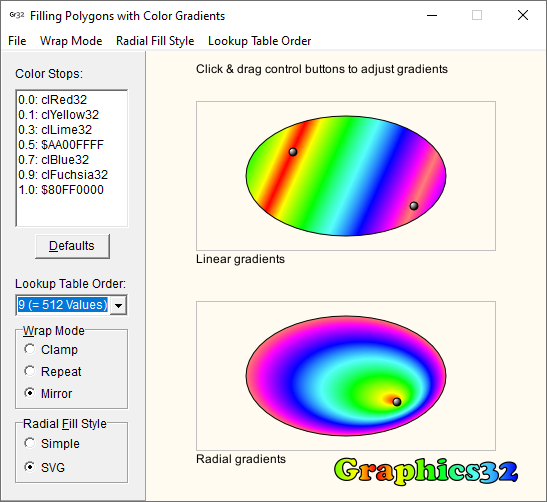

GradFills	Concept: Vector polygon color gradients Techniques: Linear and radial gradient fills with color stops API: TLinearGradientPolygonFiller, TRadialGradientPolygonFiller, TRadialGradientSampler, TSamplerFiller, TColor32Gradient, PolygonFS, PolylineFS, TColor32LookupTable, TFlattenedPath, TextToPath

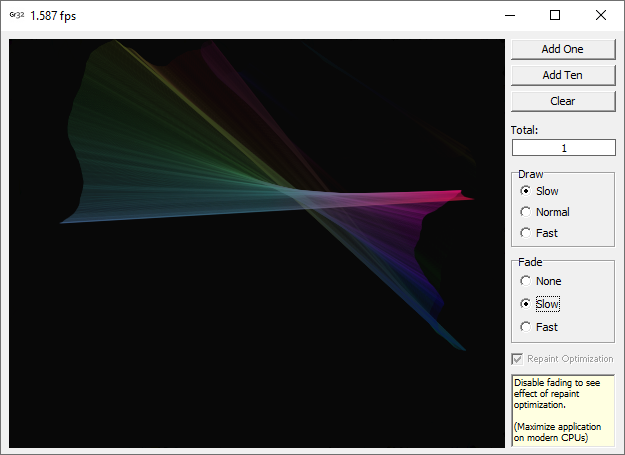

GradLines	Concept: Gradient stipple lines and repaint optimization Techniques: Custom line stippling patterns, incremental fading, repaint region tracking API: SetStipple, StippleCounter, StippleStep, TPaintBox32, TBitmap32

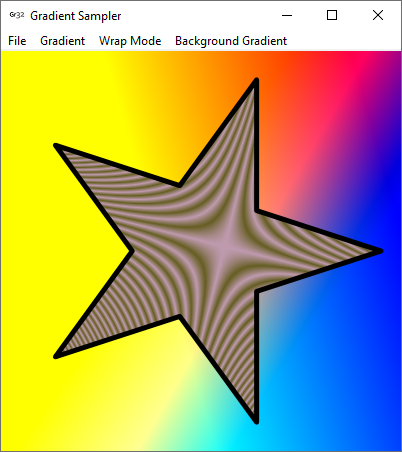

GradSampler	Concept: Gradient samplers and custom polygon fillers Techniques: Sampler-based vector polygon rendering and color interpolation API: PolygonFS, TPolygonRenderer32VPR, TBarycentricGradientSampler, TDiamondGradientSampler, TRadialGradientSampler, TConicGradientSampler, TXYGradientSampler, TXYSqrtGradientSampler, TInvertedDistanceWeightingSampler, TBarycentricGradientSampler, TVoronoiSampler, TSamplerFiller

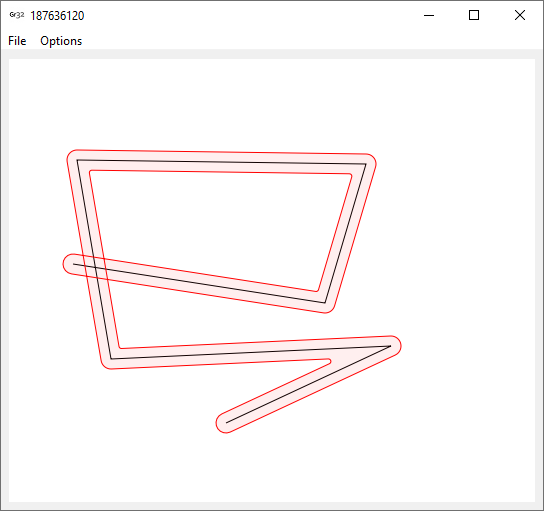

Grow	Concept: Polyline stroke expansion and outline inflation Techniques: Path growing, join and end-cap styling API: Grow, TImage32

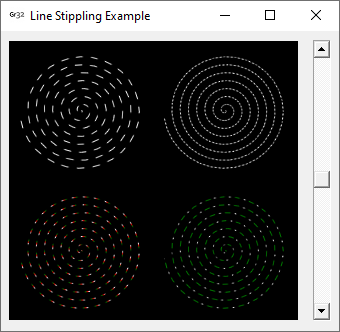

LineStippling	Concept: Dashed and patterned vector lines Techniques: Stipple pattern definition and phase offset control API: SetStipple, StippleCounter, StippleStep, LineToFSP

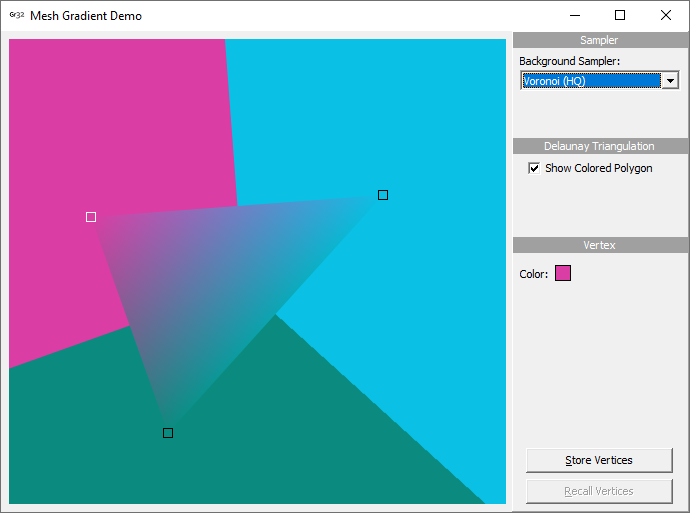

MeshGradients	Concept: Mesh gradients and Delaunay triangulation Techniques: Barycentric color interpolation across triangulated mesh nodes API: PolygonFS, TPolygonRenderer32VPR, TVoronoiSampler, TAdaptiveSuperSampler, TInvertedDistanceWeightingSampler, TGourandShadedDelaunayTrianglesSampler

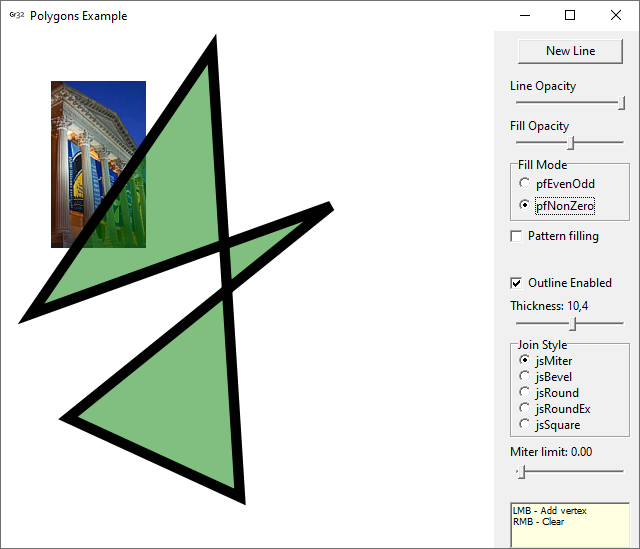

Polygons	Concept: Vector polygon rasterization and canvas brush styles Techniques: Stroke/fill brush management and VPR rendering API: TCanvas32, TStrokeBrush, TSolidBrush, TJoinStyle, TPolyFillMode, TBitmapPolygonFiller

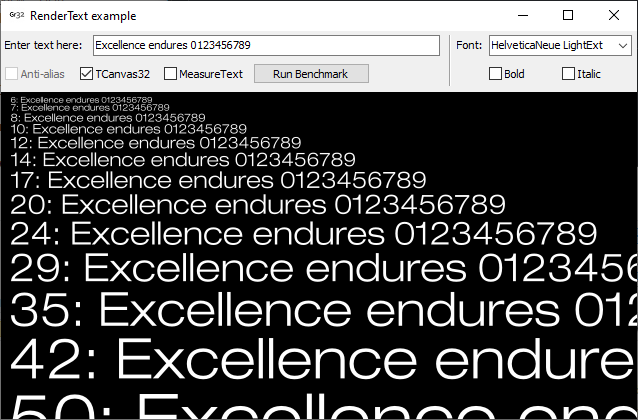

RenderText	Concept: High-quality vector text rendering Techniques: TrueType outline extraction and path rendering API: RenderText, TCanvas32, TSolidBrush, TStrokeBrush, TBitmap32, TImage32

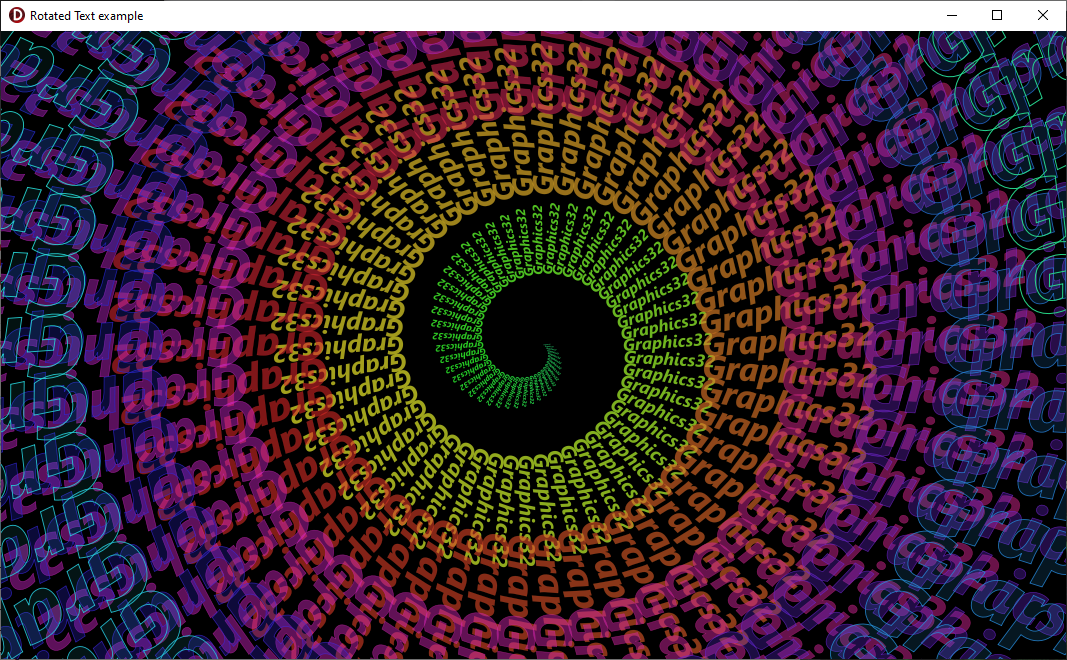

Rotated text	Concept: Rotated vector typography Techniques: Affine path transformation and stroke/fill brush rendering API: TAffineTransformation, TCanvas32, TSolidBrush, TStrokeBrush

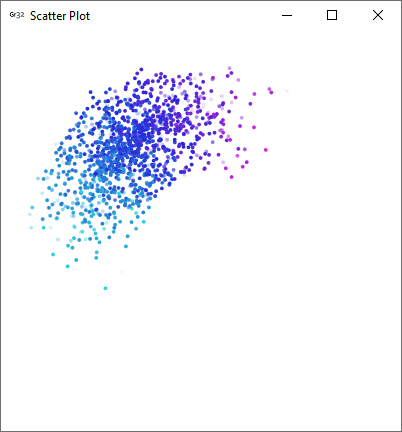

ScatterPlot	Concept: Statistical scatter plot visualization Techniques: Rapid antialiased glyph/circle rasterization for large datasets API: TPolygonRenderer32VPR, TImage32

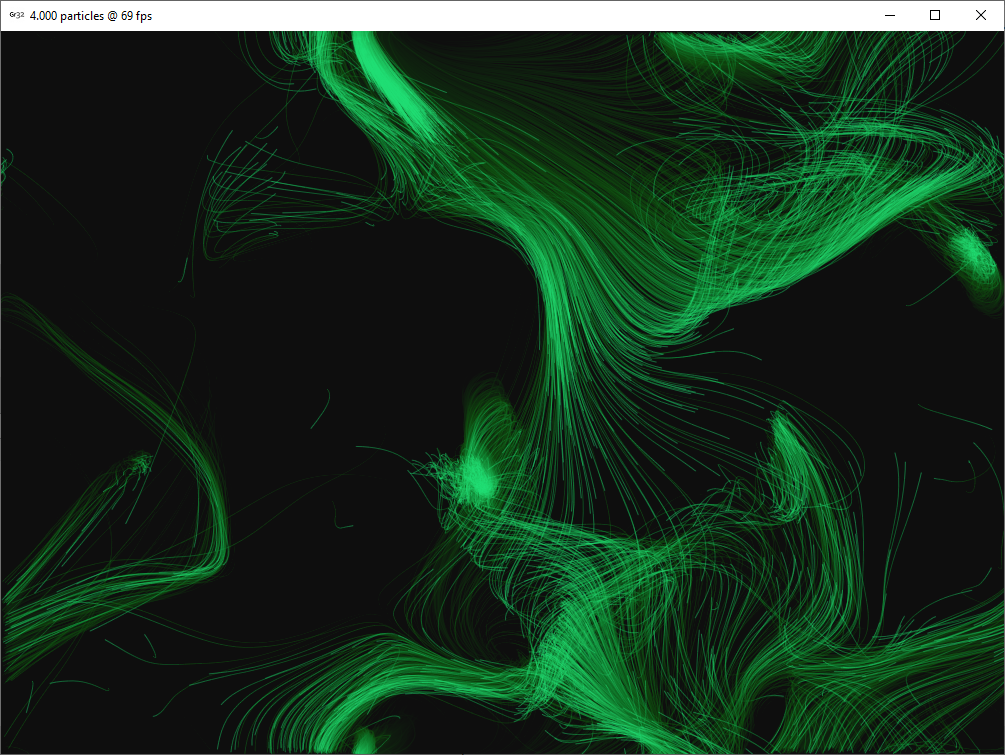

Swarm	Concept: Real-time particle animation and vector noise fields Techniques: Particle dynamics driven by 2D Simplex noise with buffer fading API: GR32.Noise.Simplex, TPaintBox32, TBitmap32, GR32_Blend

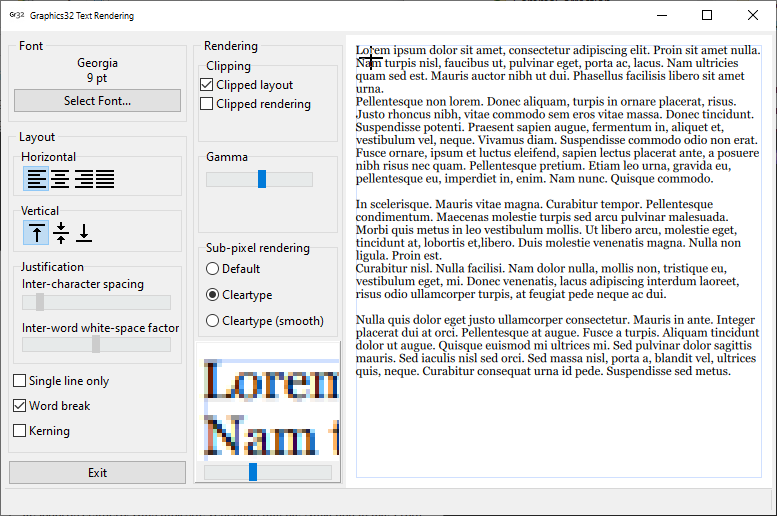

TextVPR	Concept: Advanced text layout and ClearType subpixel rendering Techniques: Subpixel LCD antialiasing and paragraph typography API: TPolygonRenderer32LCD, TPolygonRenderer32LCD2, TPolygonRenderer32VPR, TCanvas32, TSolidBrush

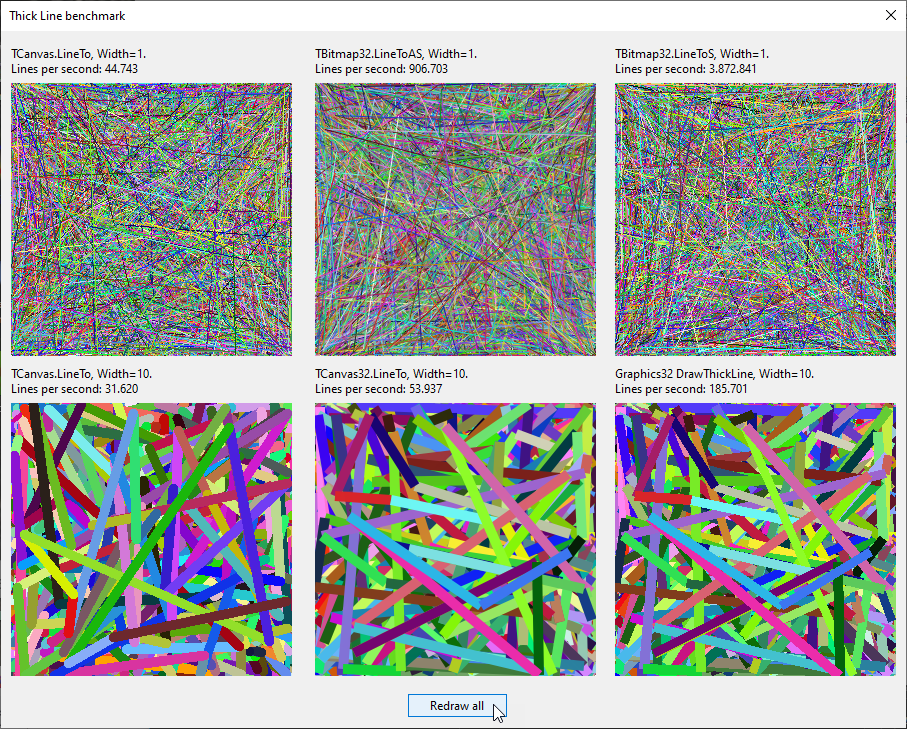

Thick Lines	Concept: Polyline stroke width comparison Techniques: GDI vs Graphics32 line drawing performance benchmarking API: GR32.Lines.Thick, TStrokeBrush, TCanvas32

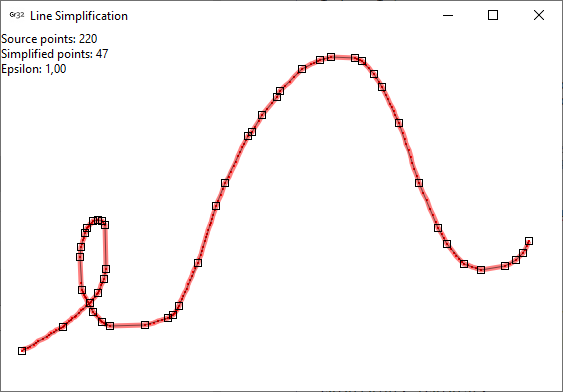

VertexReduction	Concept: Polyline vertex simplification Techniques: Douglas-Peucker point reduction algorithm API: TCanvas32, TStrokeBrush, TPaintBox32

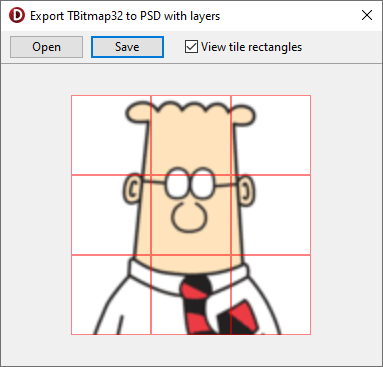

Bitmap32 to PSD layers	Concept: Multi-layer Adobe Photoshop file export Techniques: PSD binary file structure encoding and layer composition export API: GR32.ImageFormats.PSD, TBitmap32, TImgView32

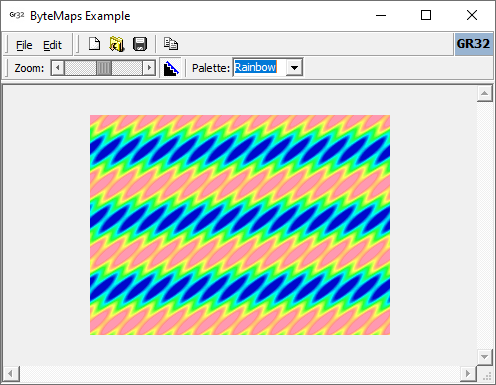

ByteMaps	Concept: 8-bit intensity mapping and indexed color palettes Techniques: Single-channel byte map storage and color table lookups API: TByteMap, TImgView32, TBitmap32, TLinearResampler, TNearestResampler

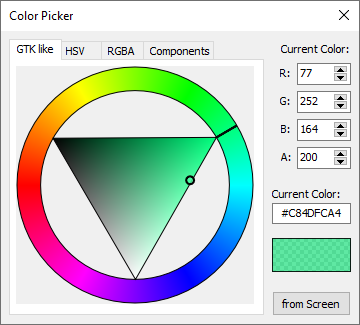

Color Picker	Concept: Custom color selection controls Techniques: HSV/RGB color space conversions and custom UI control painting API: GR32_ColorPicker, GR32_ColorSwatch

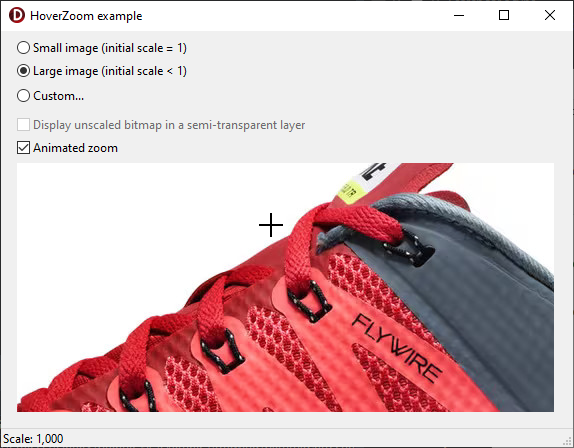

HoverZoom	Concept: Interactive viewport magnification Techniques: Loupe/magnifying glass effect and mouse-tracking viewport layers API: TImage32, TBitmapLayer, TCustomLayer, GR32_PNG

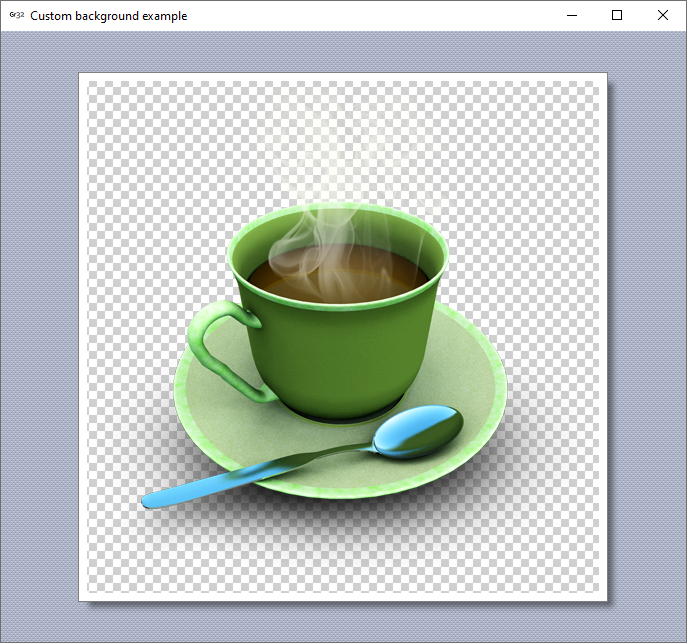

Image32 background	Concept: Background pattern rendering for TImage32 Techniques: Checkerboard background options and custom paint stages API: TImgView32, TBackgroundOptions

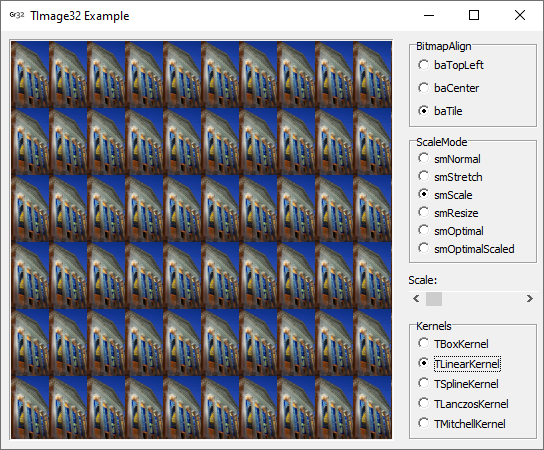

Image32	Concept: Core features of TImage32 Techniques: Image display scale modes, alignment, scrollbars, and resampling kernels API: TImage32, TKernelResampler, TLanczosKernel, TMitchellKernel

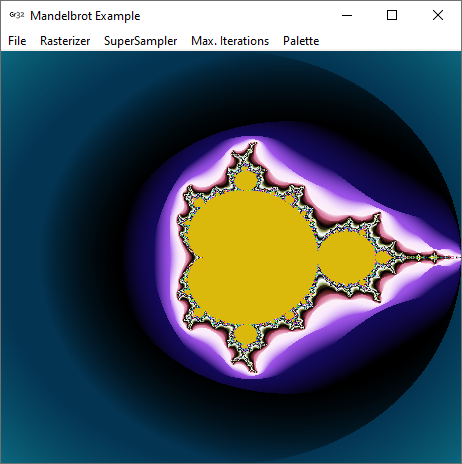

Mandelbrot	Concept: Procedural synthetic fractal generation Techniques: Complex plane fractal calculation, multithreaded rasterization, sampler pipelines API: TMultithreadedRegularRasterizer, TContourRasterizer, TCustomSampler

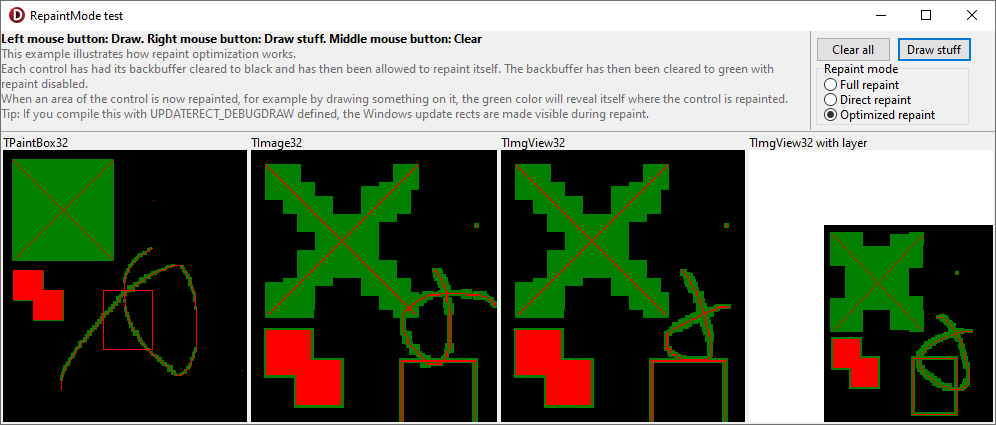

Optimized repaint	Concept: Invalidation and repaint optimization Techniques: Visualizing dirty rectangle tracking and selective redraws API: TImage32, TImgView32, TPaintBox32, TBitmapLayer

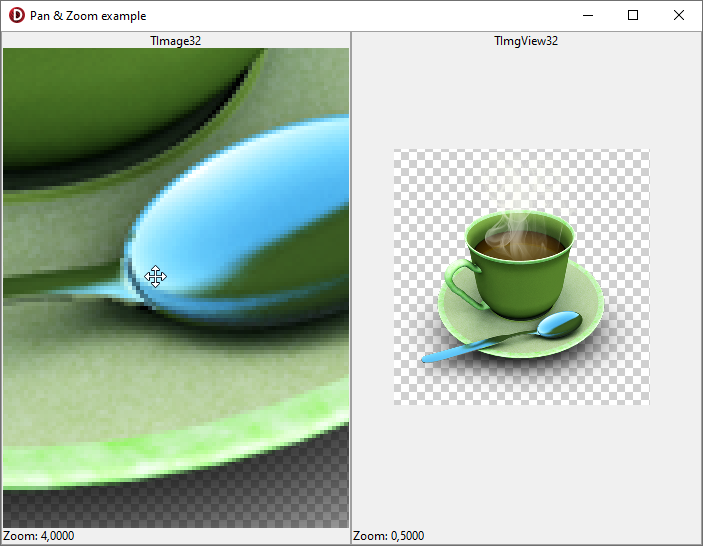

Pan & Zoom	Concept: Interactive viewport navigation Techniques: Smooth panning, zooming, and mouse wheel scroll handling in TImgView32 API: TImgView32, TImage32

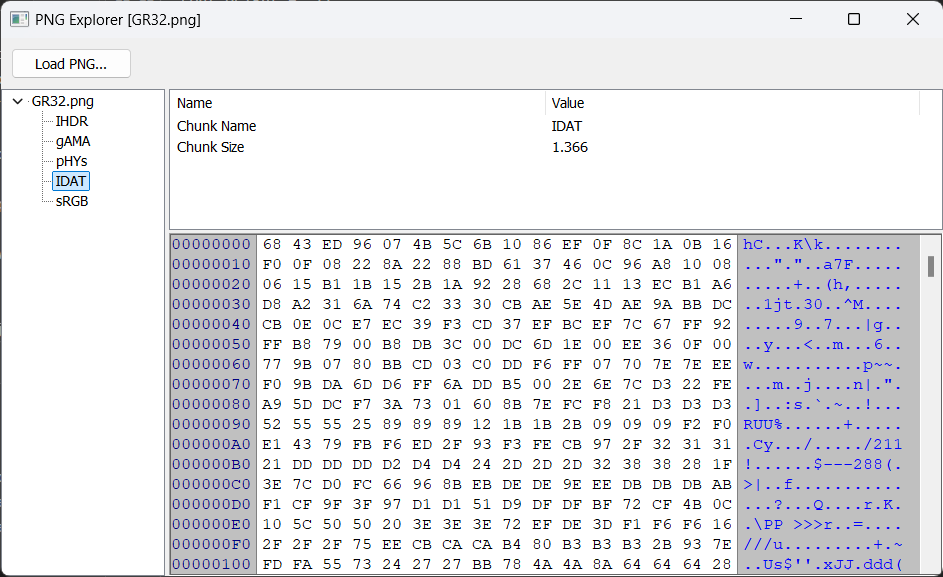

PNG Explorer	Concept: Low-level PNG image format inspection Techniques: Chunk parsing (IHDR, PLTE, tRNS, IDAT) and metadata extraction API: GR32_PortableNetworkGraphic, GR32_PNG

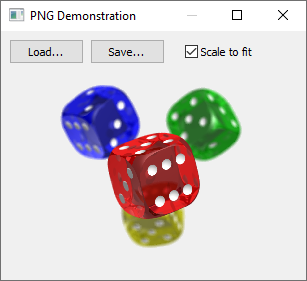

PNG Image32	Concept: PNG loading and display Techniques: Full alpha channel transparency rendering in UI controls API: GR32_PortableNetworkGraphic, GR32_PNG, TImage32, TBitmap32

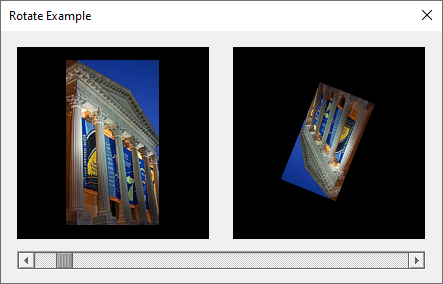

Rotate	Concept: Affine matrix rotation and scaling Techniques: Direct matrix transformation applied to bitmap contents API: TAffineTransformation, TImage32, GR32_Transforms

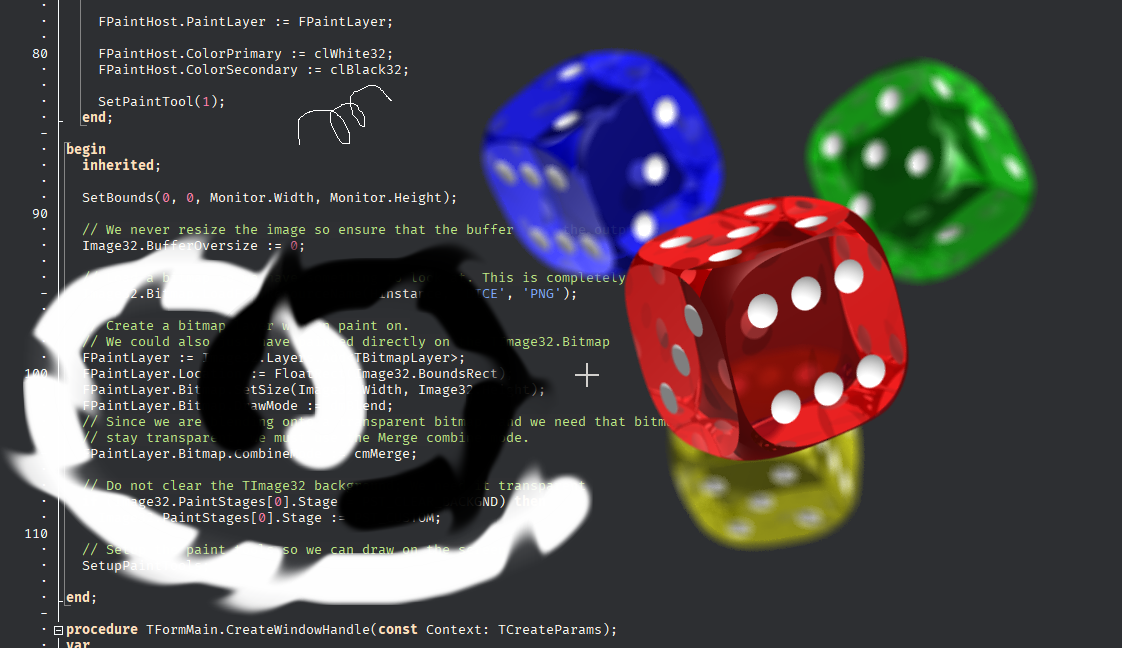

Transparent form	Concept: Per-pixel translucent Windows forms Techniques: Layered window API integration (UpdateLayeredWindow) API: TBitmapLayer, TImage32, TBitmap32, GR32_Blend

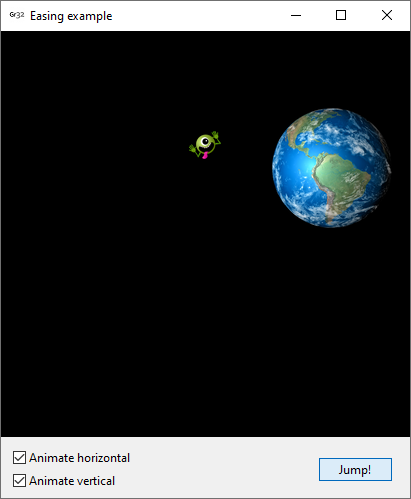

Bounce	Concept: Animated sprite layers and physics movement Techniques: Time-based animation loops, easing curves, layer translation API: TBitmapLayer, TImage32, TLinearResampler

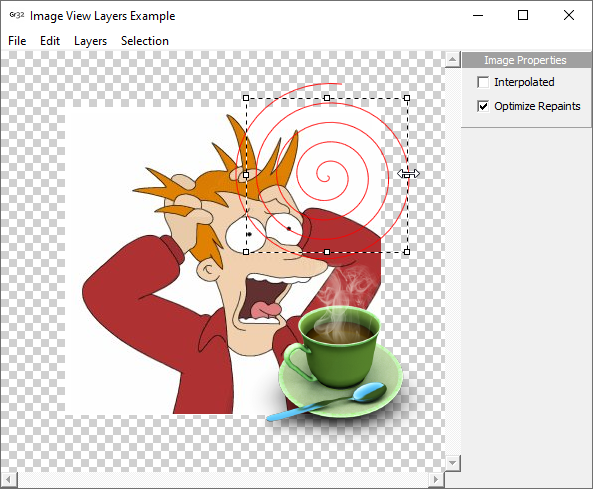

ImgView_Layers	Concept: Interactive layer management Techniques: Custom rubberband handles, layer rotation, locking, and hit testing API: TImgView32, TBitmapLayer, TRubberbandLayer, TCustomLayer, TAffineTransformation, PolyPolygonFS

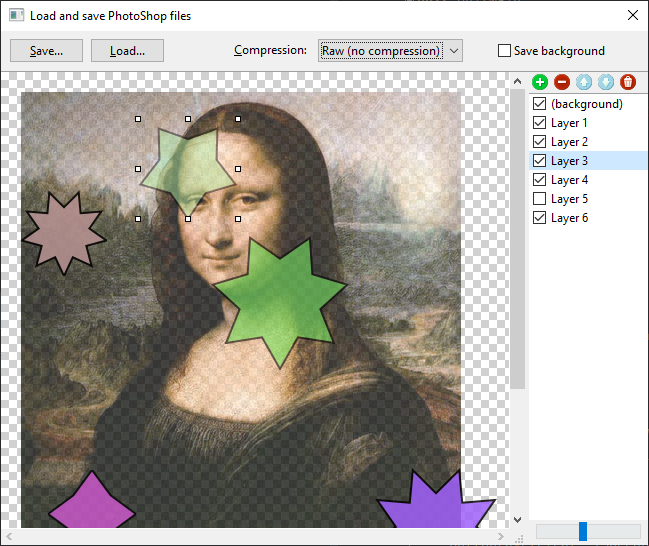

PSD import export	Concept: Adobe Photoshop (PSD) file import and export Techniques: Mapping Photoshop layer stacks and blend modes to TImgView32 API: GR32.ImageFormats.PSD, TBitmapLayer, TImgView32, PolygonFS, PolylineFS

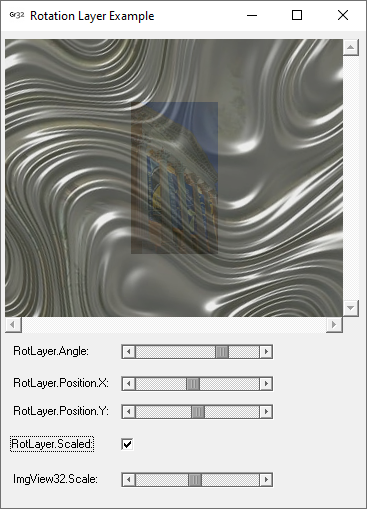

RotLayer	Concept: Transformed layer rendering Techniques: Layer-level affine transformations with interactive control handles API: TAffineTransformation, TImgView32, TLinearResampler
Space Invaders	Concept: Retro game arcade mechanics Techniques: Sprite layer management, collision detection, fast frame redrawing API: TBitmapLayer, TImage32, TNearestResampler, TBitmap32
Sprites	Concept: High-density sprite layer performance Techniques: Repaint optimization benchmark with thousands of moving sprite layers API: TBitmapLayer, TImage32, TBitmap32, GR32_Transforms

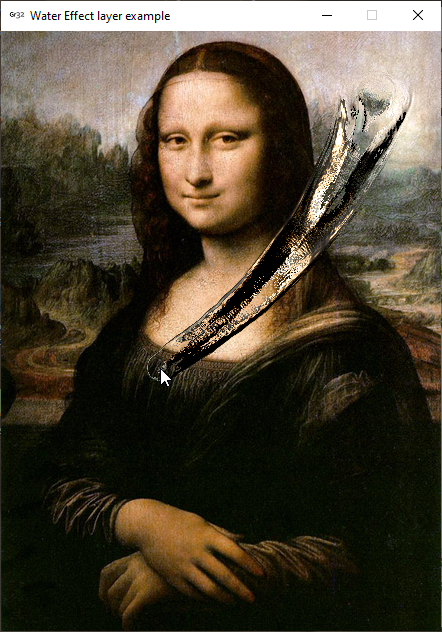

WaterEffect	Concept: Fluid wave and ripple simulation Techniques: Wave propagation buffers, displacement mapping, custom paint stages API: TCustomLayer, TImage32, TBitmap32, TIntegerMap, GR32_OrdinalMaps

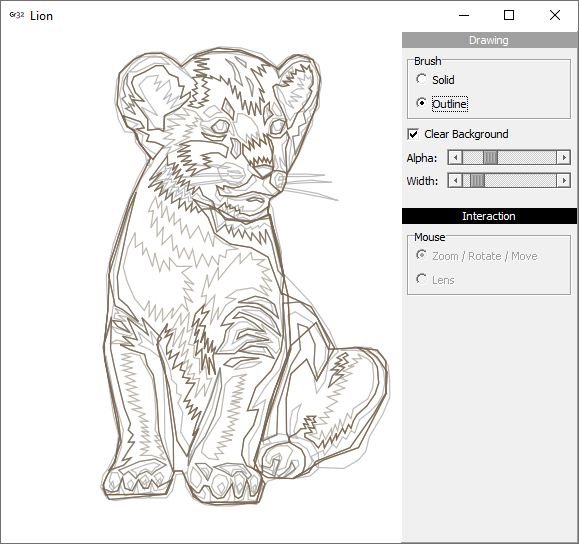

Lion

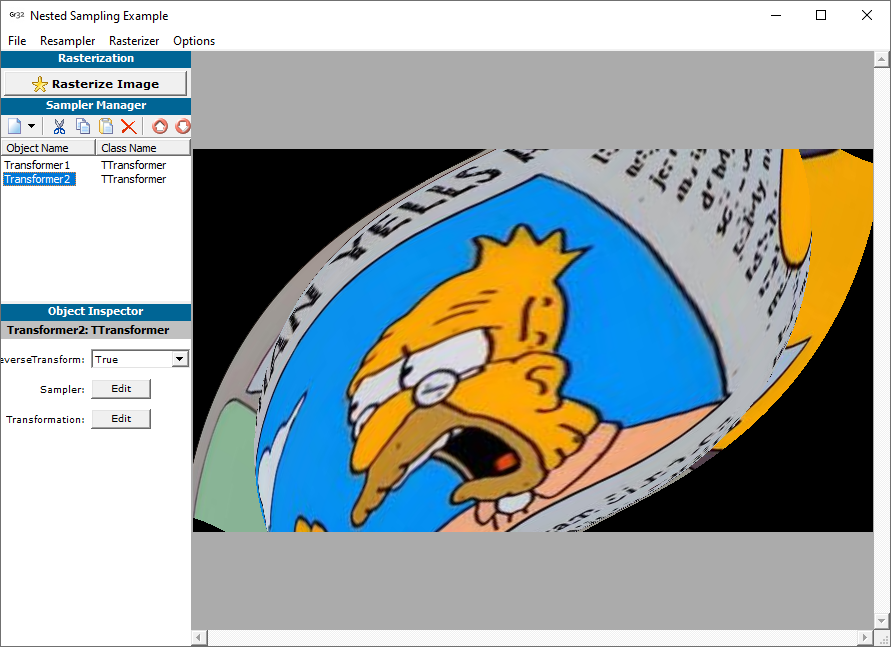

NestedSampling	Concept: Nested sampler pipelines Techniques: Chaining super-samplers, color transformers, and custom rasterizers API: TCustomSampler, TSuperSampler, TContourRasterizer

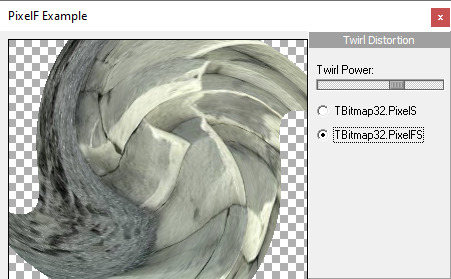

PixelF	Concept: Subpixel precision sampling Techniques: Floating-point pixel addressing (PixelF vs PixelFS) API: PixelF, PixelFS, TImage32, TBitmap32, GR32_Blend

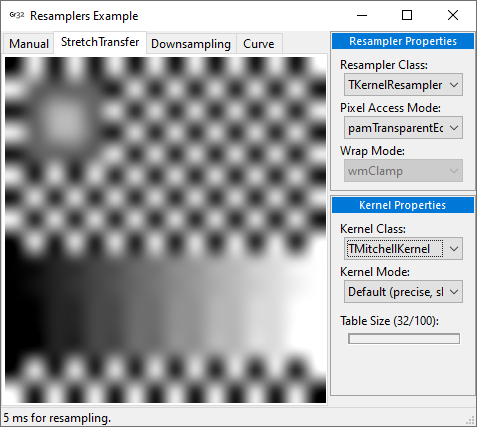

Resamplers	Concept: Bitmap resampling filters Techniques: Comparing resampler kernels (Nearest, Linear, Lanczos, Mitchell, Cubic, Gaussian) API: TLinearResampler, TKernelResampler, TLanczosKernel, TMitchellKernel, TCubicKernel, PolygonFS, PolylineFS

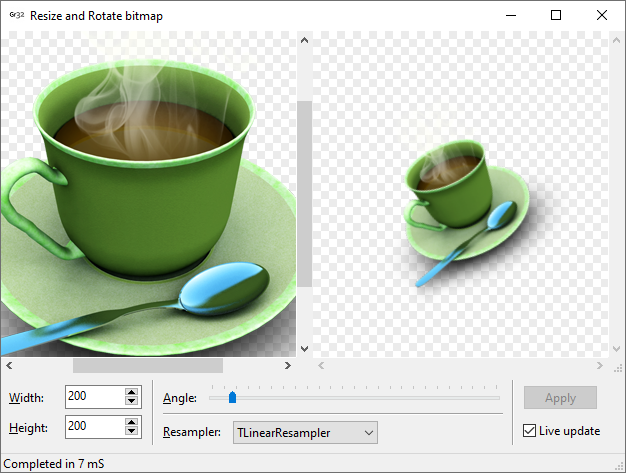

Resize and Rotate	Concept: Scaled and rotated bitmap resampling Techniques: Combining affine transformations with kernel resamplers and rasterizers API: TAffineTransformation, TKernelResampler, TCubicKernel, TImgView32

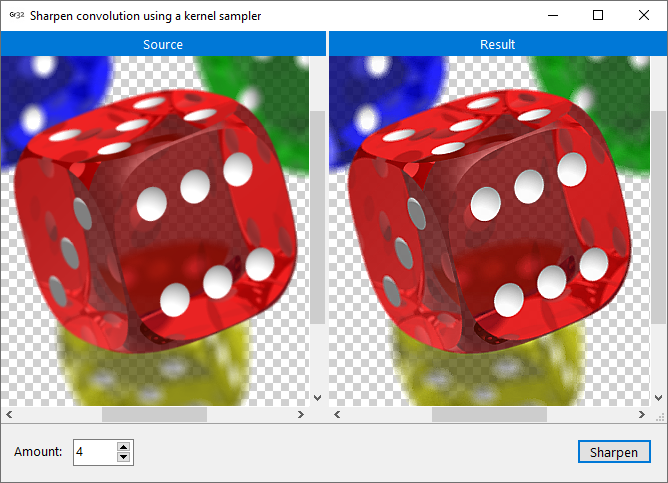

SharpenConvolution	Concept: Image sharpening filters Techniques: Spatial convolution filtering via kernel samplers API: TLinearResampler, TNearestResampler, TImgView32, TIntegerMap

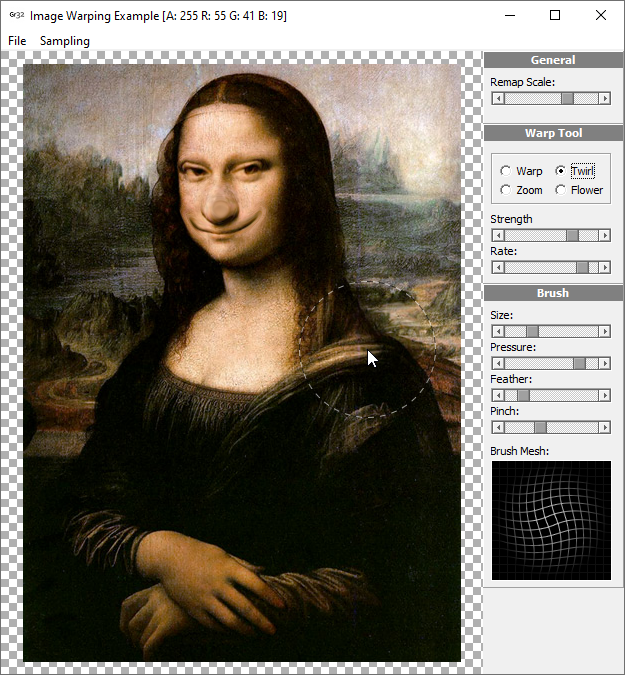

ImgWarping	Concept: Non-linear image deformation and warping Techniques: Grid displacement remapping and interactive mesh warp tools API: TRemapTransformation, TVectorMap, TImgView32, TKernelResampler, TSuperSampler

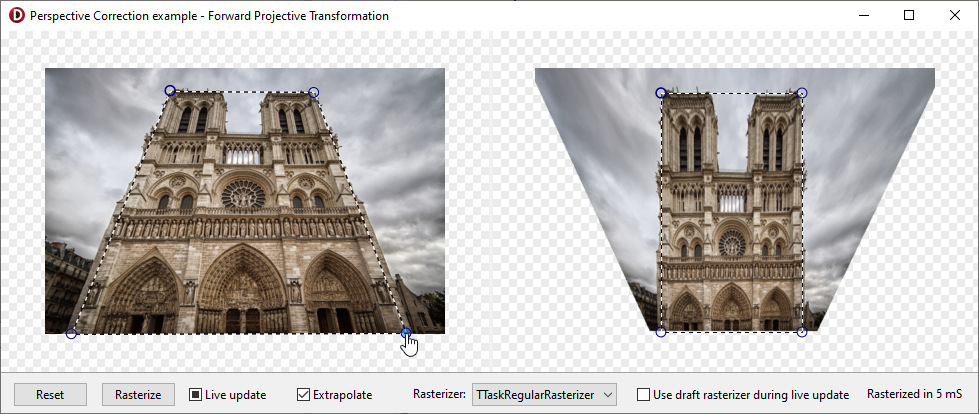

Perspective Correction	Concept: 3D perspective distortion and quad mapping Techniques: Forward and inverse projective transformations with interactive handles API: TImage32, TProjectiveTransformationEx, TPolygonRubberbandLayer, TLinearResampler, TDraftRasterizer

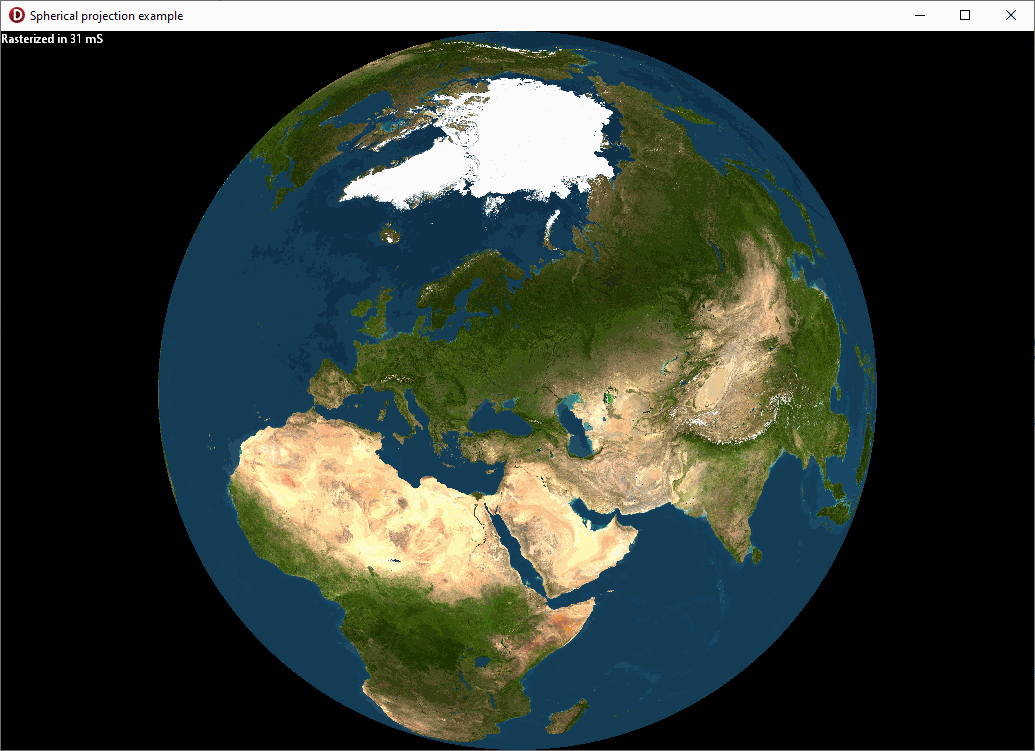

Sphere	Concept: 3D spherical projection transformation Techniques: Spherical mapping, interactive Arcball 3D rotation, multithreaded rasterization API: TMultithreadedRegularRasterizer, TDraftRasterizer, TLinearResampler, TPaintBox32, TBitmap32

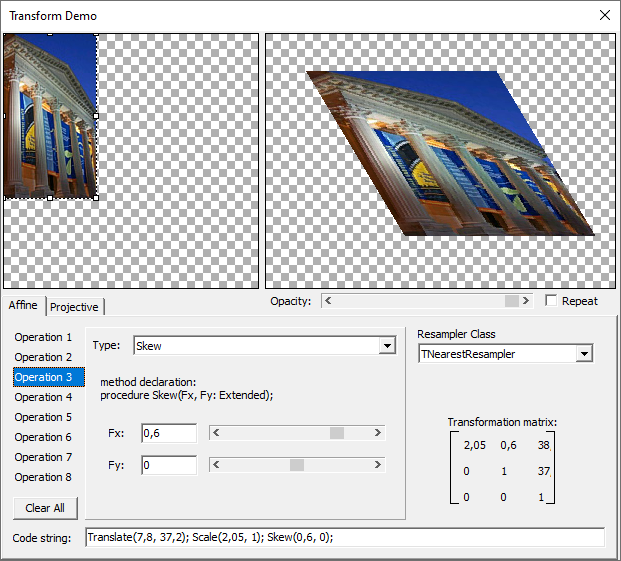

Transform	Concept: Compound transformations Techniques: Chaining affine and non-linear transformations (twirl, skew, rotate, scale) API: TImage32, TAffineTransformation, TKernelResampler

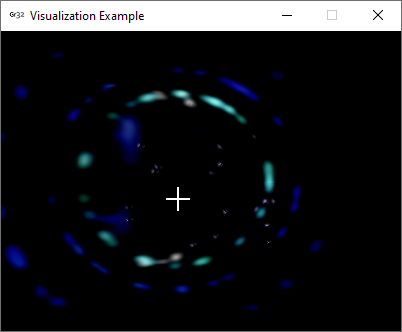

Visualization	Concept: Real-time audio waveform and spectrum visualization Techniques: High-frequency feedback buffer updating and real-time plotting API: TVectorMap, BlendReg, GR32_LowLevel
