Getting Started with Graphics32 ​

Welcome to Graphics32! Whether you are building real-time image processing tools, custom UI widgets, data visualizers, or high-performance 2D games in Delphi or Lazarus (Free Pascal), Graphics32 gives you the speed, quality, and control needed for modern graphics applications.

What is Graphics32? ​

Graphics32 is an open-source, high-performance 2D graphics library designed specifically for Delphi and Lazarus / Free Pascal (FPC).

While standard framework controls (like VCL TBitmap and TCanvas) rely on platform OS APIs (such as Windows GDI), Graphics32 works directly with 32-bit Device Independent Bitmaps (DIBs) in memory. By implementing hand-optimized SIMD assembler routines (SSE2, SSE4.1, etc.) and custom algorithms, Graphics32 provides pixel manipulation speeds up to 100 times faster than native framework canvas operations.

Key Highlights ​

  • 32-Bit ARGB Color Model: Full 8-bit per-channel precision for Red, Green, Blue, and Alpha transparency.
  • Sub-Pixel Precision & Anti-Aliasing: Smooth line drawing and vector path rendering without jagged edges.
  • Vector Path & Text Engine: Advanced vector rasterizer (TCanvas32) supporting gradients, complex paths, and outlined text.
  • High-Quality Resampling & Transforms: Flexible resampler filters (Bilinear, Lanczos, Cubic) and affine transformations (rotation, scaling, skewing).
  • Interactive Layer Management: Multi-layer bitmap composition with interactive position, scale, and alpha properties (TImage32 + TBitmapLayer).
  • Cross-Platform: Support for Windows (32-bit & 64-bit), Linux, and macOS.

See also: Features

1. Creating and Managing Bitmaps (TBitmap32) ​

The core object in Graphics32 is TBitmap32. Unlike TBitmap of the standard framework, TBitmap32 is optimized to exclusively use a 32-bit ARGB pixel layout (TColor32/TColor32Entry).

Basic Initialization and Color Creation ​

TIP

All the source code in this tutorial is available as read-to-run projects in the Graphics32 Examples\Getting Started folder.

We suggest that, for each tutorial section, you start by reading the text and then experiment with the code afterwards.

Before you can do anything with a bitmap, you need to specify the bitmap size in pixels. This can either be done by setting the bitmap Width and Height properties individually, or it can be done with the SetSize method which sets them both in one go. By default SetSize will clear the bitmap to 100% transparent black, but this can be avoided (for better performance) if you are going to clear the bitmap to another color yourself anyway.

Colors in Graphics32 are represented by the standard TColor32 type (a 32-bit unsigned integer usually formatted as $AARRGGBB). You can construct colors using the helper function Color32(R, G, B, A), you can use the built-in constants like clRed32, clBlue32, and clWhite32, or you can simple specify the numeric value of the color. The latter is most easily done in hex notation: $FFFF0000 🔴, $FF0000FF 🔵, $FFFFFFFF ⚪, etc.

pascal
uses
  GR32;

procedure CreateAndClearBitmap;
var
  Bitmap: TBitmap32;
begin
  Bitmap := TBitmap32.Create;
  try
    // Set the width and height of the bitmap.
    // Do not waste time clearing the bitmap since we do that below.
    Bitmap.SetSize(400, 300, False);

    // Clear the entire canvas with a semi-transparent blue-ish background
    // Color32 parameters: Red, Green, Blue, Alpha (0 = transparent, 255 = opaque)
    Bitmap.Clear(Color32(41, 128, 185, 127));

    // Save the result to a BMP file...
    Bitmap.SaveToFile('getting-started-bitmap.bmp');
    // ...and also save to a PNG file while we're at it
    Bitmap.SaveToFile('getting-started-bitmap.png');
  finally
    Bitmap.Free;
  end;
end;

Example source code

A bitmap - Yawn!

See also:

2. Direct Pixel Access (Pixel[] & PixelS[]) ​

One of Graphics32's greatest strengths is direct array access to pixel memory.

You can read or write any pixel on the bitmap using the default Pixel[X, Y] property. If you need safety against out-of-bounds coordinates (such as during image processing loops), use PixelS[X, Y] which automatically performs clipping.

pascal
uses
  GR32;

procedure CreateCustomGradient(Bitmap: TBitmap32);
var
  X, Y: Integer;
  R, G, B: Byte;
begin
  Bitmap.SetSize(256, 256, False);

  // Directly set each pixel color based on coordinates
  for Y := 0 to Bitmap.Height - 1 do
  begin
    for X := 0 to Bitmap.Width - 1 do
    begin
      R := Byte(X);
      G := Byte(Y);
      B := 128;
      // Pixel[] offers raw, high-speed per-pixel access
      Bitmap.Pixel[X, Y] := Color32(R, G, B, 255);
    end;
  end;
end;

Example source code

Direct Pixel Access Gradient

See also:

3. Drawing Shapes & Alpha Blending ​

Graphics32 supports drawing primitives like lines, rectangles, and ellipses directly onto TBitmap32.

To fill rectangles with alpha transparency, use FillRectT (or FillRectTS for bounds-checked clipping). For anti-aliased lines, use Bitmap.LineA.

pascal
uses
  GR32;

procedure DrawBlendedShapes(Bitmap: TBitmap32);
begin
  Bitmap.SetSize(320, 200, False);
  Bitmap.Clear(clWhite32);

  // Draw an anti-aliased diagonal blue line
  Bitmap.LineA(20, 20, 300, 180, clBlue32);

  // Fill a solid red-ish rectangle (opaque)
  Bitmap.FillRect(30, 40, 150, 160, Color32(231, 76, 60, 255));

  // Fill an overlapping semi-transparent green-ish rectangle (50% opacity) using FillRectT
  Bitmap.FillRectT(100, 80, 250, 180, Color32(46, 204, 113, 128));
end;

Example source code

Shapes with Transparency and Alpha Blending

See also:

4. Vector Graphics & Text with TCanvas32 ​

For advanced vector rendering, such as antialiased text, custom path outlines, and smooth color gradients, you can use TCanvas32 from the GR32_Paths unit.

TCanvas32 coordinates vector paths and applies brushes from its Brushes collection (such as TSolidBrush and TStrokeBrush) to fill or stroke vector paths and rendered text onto the target TBitmap32.

Example: Outlined Text filled with a Color Gradient ​

pascal
uses
  GR32, GR32_Paths, GR32_Brushes, GR32_ColorGradients, GR32_Polygons;

procedure DrawGradientText(Bitmap: TBitmap32);
var
  Canvas: TCanvas32;
  FillBrush: TSolidBrush;
  StrokeBrush: TStrokeBrush;
  Filler: TLinearGradientPolygonFiller;
begin
  Bitmap.SetSize(400, 150, False);
  Bitmap.Clear(Color32(30, 30, 30));

  // Configure font settings on the target bitmap
  Bitmap.Font.Name := 'Cooper Black';
  Bitmap.Font.Size := 40;

  Canvas := TCanvas32.Create(Bitmap);
  try
    // 1. Configure solid fill brush with a linear gradient filler
    //    This is just one way of adding a brush; Through the Brushes.Add method.
    FillBrush := TSolidBrush(Canvas.Brushes.Add(TSolidBrush));
    FillBrush.FillMode := pfNonZero;

    Filler := TLinearGradientPolygonFiller.Create;
    try
      Filler.SimpleGradient(FloatPoint(0, 45), Color32(255, 120, 0),
                            FloatPoint(0, 95), Color32(255, 0, 128));
      FillBrush.Filler := Filler;

      // 2. Configure stroke brush for white outline
      //    This another way of adding a brush; Through the brush constructor.
      StrokeBrush := TStrokeBrush.Create(Canvas.Brushes);
      StrokeBrush.FillColor := clWhite32;
      StrokeBrush.StrokeWidth := 1.5;

      // Render vector text using both brushes on TCanvas32
      Canvas.RenderText(20, 45, 'Graphics32');
    finally
      Filler.Free;
    end;
  finally
    Canvas.Free;
  end;
end;

Example source code

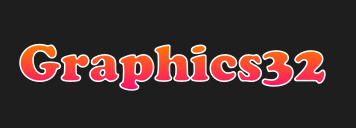

Vector Text with Stroke and Gradient Fill

See also:

5. Resampling & Bitmap Rotation ​

Graphics32 makes it easy to scale and rotate images with crisp sub-pixel interpolation.

High-Quality Bitmap Resampling (Scaling) ​

When resizing bitmaps, you can assign high-quality resamplers (such as TLinearResampler or TKernelResampler) to control interpolation quality.

pascal
uses
  GR32, GR32_Resamplers;

procedure ScaleImageHighQuality(Source, Target: TBitmap32; NewWidth, NewHeight: Integer);
begin
  Target.SetSize(NewWidth, NewHeight);

  // Instantiating TLinearResampler automatically assigns it to Source.Resampler
  TLinearResampler.Create(Source);

  // Stretch-draw source onto target with smooth bilinear filtering
  Source.DrawTo(Target, Target.BoundsRect);
end;

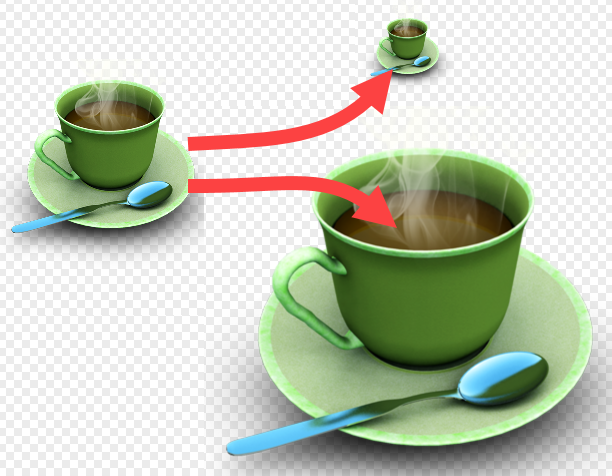

Bitmap Resampling

INFO

Note that when we create a resampler, and specify a bitmap as the owner, ownership of the resampler is automatically transferred to the bitmap and its previous resampler is freed.

See also:

Rotating a Bitmap with TAffineTransformation ​

The TAffineTransformation class (located in GR32_Transforms) lets you rotate, scale, and translate bitmaps arbitrarily around any center point. Use the standalone Transform routine from GR32_Transforms to transform the Source bitmap into the Target bitmap.

pascal
uses
  Math, GR32, GR32_Transforms, GR32_Resamplers;

procedure RotateBitmap(Source, Target: TBitmap32; AngleDegrees: Single);
var
  Transform: TAffineTransformation;
  r: TFloatRect;
begin
  Transform := TAffineTransformation.Create;
  try
    // Translate origin to center, rotate by angle, and translate back.
    // In other words: Rotate around center point (X, Y) by specified angle in degrees
    Transform.Rotate(Source.Width / 2, Source.Height / 2, AngleDegrees);

    // Get the size the bitmap will have once it's been rotated
    r := Transform.GetTransformedBounds(FloatRect(Source.BoundsRect));

    // Center the rotated result in the target bitmap (which will be larger
    // than the source because of the rotation)
    Transform.Translate((r.Width - Source.Width) / 2, (r.Height - Source.Height) / 2);

    // Size the target so it fits the rotated bitmap
    Target.SetSize(Ceil(r.Width), Ceil(r.Height));

    // Apply the transformation
    GR32_Transforms.Transform(Target, Source, Transform);
  finally
    Transform.Free;
  end;
end;

Example source code

Bitmap Rotation

See also:

6. Image Display & Interactive Layers with TImage32 ​

To display bitmaps in your Delphi or Lazarus forms with flicker-free rendering, Graphics32 provides the TImage32 component.

Basic Image Display ​

Drop a TImage32 onto your form and perform your drawing directly on its Bitmap buffer:

pascal
implemtation

uses
  GR32, GR32_Image, GR32_Layers;
...
pascal
procedure TForm1.FormCreate(Sender: TObject);
begin
  // Size background bitmap and clear to opaque white
  Image321.Bitmap.SetSize(400, 300, False);
  Image321.Bitmap.Clear(clWhite32);

  // Draw blue-ish opaque box onto background bitmap
  Image321.Bitmap.FillRect(20, 20, 200, 200, Color32(52, 152, 219));
end;

Form with TImage32

Using Image Layers (TBitmapLayer) ​

TImage32 has built-in support for interactive overlay layers. A TBitmapLayer contains its own bitmap buffer and can be positioned, scaled, made semi-transparent, and dragged independently over the background image.

Note on Layer bitmap ownership

When you create a TBitmapLayer.Create(Image32.Layers), the layer automatically manages and frees its internal Bitmap instance. You do not need to manually instantiate or free Layer.Bitmap.

First let's create a function that sets up a bitmap layer, fills it with some color and places it at a random position:

pascal
function TForm1.AddOverlayLayer(AImageControl: TImage32; AColor: TColor32): TPositionedLayer;
var
  Layer: TBitmapLayer;
  r: TFloatRect;
begin
  // Create a new bitmap layer owned by ImageControl.Layers
  Layer := TBitmapLayer.Create(AImageControl.Layers);

  // Configure layer/bitmap size and color
  Layer.Bitmap.SetSize(120, 120, False);
  Layer.Bitmap.Clear(AColor);

  // Setup bitmap blending so the transparency works
  Layer.Bitmap.DrawMode := dmBlend;
  Layer.Bitmap.CombineMode := cmMerge;

  // Make layer position relative to image bitmap and follow its scale
  Layer.Scaled := True;

  // Position layer at a random position within the image control
  r.Left := Random(AImageControl.Width - Layer.Bitmap.Width);
  r.Top := Random(AImageControl.Height - Layer.Bitmap.Height);
  r.Right := r.Left + Layer.Bitmap.Width;
  r.Bottom := r.Top + Layer.Bitmap.Height;
  Layer.Location := r;

  Result := Layer;
end;

...and then update our FormCreate to create a couple of layers:

pascal
procedure TForm1.FormCreate(Sender: TObject);
var
  Layer1: TPositionedLayer;
  Layer2: TPositionedLayer;
begin
  // Size background bitmap and clear to opaque white
  Image321.Bitmap.SetSize(400, 300, False);
  Image321.Bitmap.Clear(clWhite32);

  // Draw blue-ish opaque box onto background bitmap
  Image321.Bitmap.FillRect(20, 20, 200, 200, Color32(52, 152, 219));

  // Add two bitmap layers
  Layer1 := AddOverlayLayer(Image321, clTrRed32); // Semi-transparent red
  Layer2 := AddOverlayLayer(Image321, clTrBlue32); // Semi-transparent blue
end;

TImage32 with layers

Interactive Layers (TRubberbandLayer) ​

If we want to control the size and position of the layers, we can add a TRubberbandLayer and attach it to the layer we want to manipulate.

Update the form declaration to hold a reference to our rubberband layer:

pascal
type
  TForm1 = class(TForm)
    ...
  private
    FRubberbandLayer: TRubberbandLayer;
  end;

...and update FormCreate again to create the new layer:

pascal
procedure TForm1.FormCreate(Sender: TObject);
...
begin
  ...same as before...

  // Add interactive rubberband layer...
  FRubberbandLayer := TRubberbandLayer.Create(Image321.Layers);
  // ...and attach it to the first layer
  FRubberbandLayer.ChildLayer := Layer1;
end;

Image Control with rubberband layer

Notice that we can now move and resize the bitmap layer attached to the rubberband layer. Pretty neat, huh?

But what about the other bitmap layer? Well, in theory we could just create yet another rubberband layer but instead we reuse the one we already have and switch the layer it attaches to when we click on another layer. In order to do so, we create a TImage32.OnMouseDown event handler:

pascal
procedure TForm1.Image321MouseDown(Sender: TObject; Button: TMouseButton; Shift: TShiftState;
  X, Y: Integer; Layer: TCustomLayer);
begin
  // Only react to left-click
  if (Button <> mbLeft) then
    exit;

  // Did we click on a layer - and is it one that can be moved?
  if (Layer <> nil) and (Layer is TPositionedLayer) then
  begin
    // Attach the rubberband to the layer we just clicked on (unless it's
    // the rubberband itself)
    if (Layer <> FRubberbandLayer) then
    begin
      FRubberbandLayer.ChildLayer := TPositionedLayer(Layer);
      FRubberbandLayer.Visible := True;
    end;
  end else
  begin
    // Detach and hide the rubberband when we click outside a layer
    FRubberbandLayer.ChildLayer := nil;
    FRubberbandLayer.Visible := False;
  end;
end;

And presto! We can now move and resize both layers.

Example source code

More cow bell!

Next Steps ​

Now that you have a grasp of the fundamentals, explore the rest of the documentation to dive deeper into Graphics32's capabilities:
